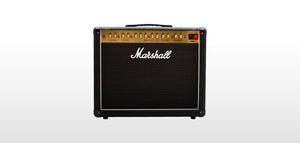

MARSHALL DSL40C 40W Valve Combo
The DSL40 has been designed with a 12” G-12 v-type speaker for those who need exceptional tone and flexibility. With rich functionality including the ability to move between two sounds within each gain channel, players can experiment and release their personality through sound.
CHOOSE YOUR TONE
Using the reverb, FX loop, tone shift controls and two footswitchable gain channels you can create a style that suits you and another to release your alter ego.
STAND OUT ON STAGE
The DSL40 has two master volumes for those loud solo moments.
VARY THE OUTPUT

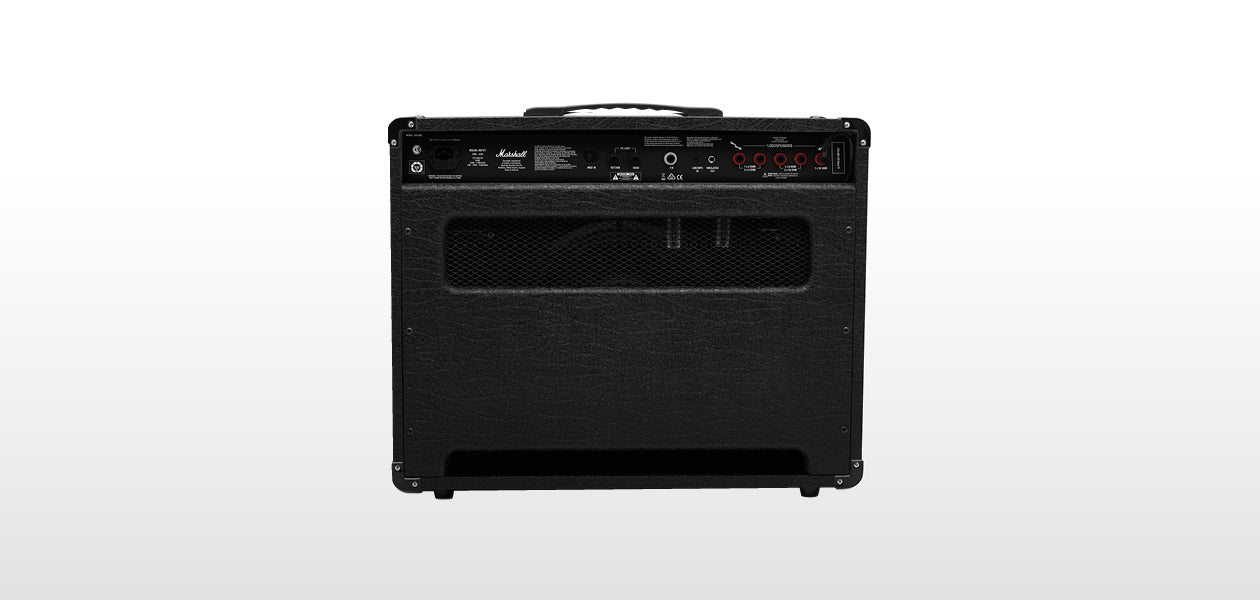

The DSL40 has five speaker outputs giving you plenty of flexibility and the ability to record, with a standby function for silent recording as well. It can be taken from the bedroom, to the studio and onto a gig.
PICK YOUR ENVIRONMENT
Power can be reduced from 40W to 20W without affecting the quality meaning the DSL40 can be used in multiple environments with confidence.
MIDI COMPATIBILITY
The amps features can be controlled using any MIDI equipment, so for those technical players you can play this amp and different MIDI equipment at any one time.
TECHNICAL SPECIFICATION
GENERAL
Model: DSL40CR
Range: DSL
Technology: Valve
Channels: 2 (Split) "Ultra gain" and "classic gain"
ELECTRONICS
Output wattage: 40W (with power reduction option to 20W)
Outputs: Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in MIDI in, footswitch
Controls: Classic gain channel (gain, volume, clean crunch switch), ultra gain channel (gain, volume, OD1/OD2 switch), treble, middle, bass, tone shift switch, presence, resonance, reverb (classic gain channel), reverb (ultra gain channel), master select switch, master volume I, master volume II, loop on/off switch, low power option (on rear)
Effects: Digital reverb
Effects loop: Yes, series, send/return
SPEAKERS
Speaker configuration: 1x12"
Speaker model: Celestion V-Type speaker (16Ω, 80w)
Unit impedance: 16Ω
VALVES
Preamp valves: 4 x ECC83
Power amp valves: 2 x EL34
ACCESSORIES
Footswitch: PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
Cable: Detachable power cable included
Dust cover: M-COVR-00116 (sold separately)
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 22.9 kg / 50 lbs
Width: 620 mm / 24.4"
Height: 490 mm / 19.3"
Depth: 252 mm / 9.9"
