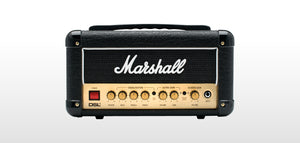

MARSHALL DSL1H 1W Valve Head

The DSL1H has the classic Marshall tone and features expected on a DSL but at a lower power to suit those who play at home. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.

PLAY AT HOME
There is the ability to reduce from 1W to 0.1W and use the emulated output for recording or headphones, we have specifically engineered the DSL1 for a great sound at low levels.

CHOOSE YOUR TONE
Using the two footswitchable gain channels you can go from clean, classic tones to those with added distortion and extra bite.

SELECT YOUR SOUND
Create the music you want using the studio quality reverb, tone shift and FX loop.


TECHNICAL SPECIFICATION

GENERAL
Model: DSL1HR
Range: DSL
Technology: Valve
Channels: 2, ultra gain and classic gain

ELECTRONICS
Output wattage: 1W with optional power reduction to 0.1W

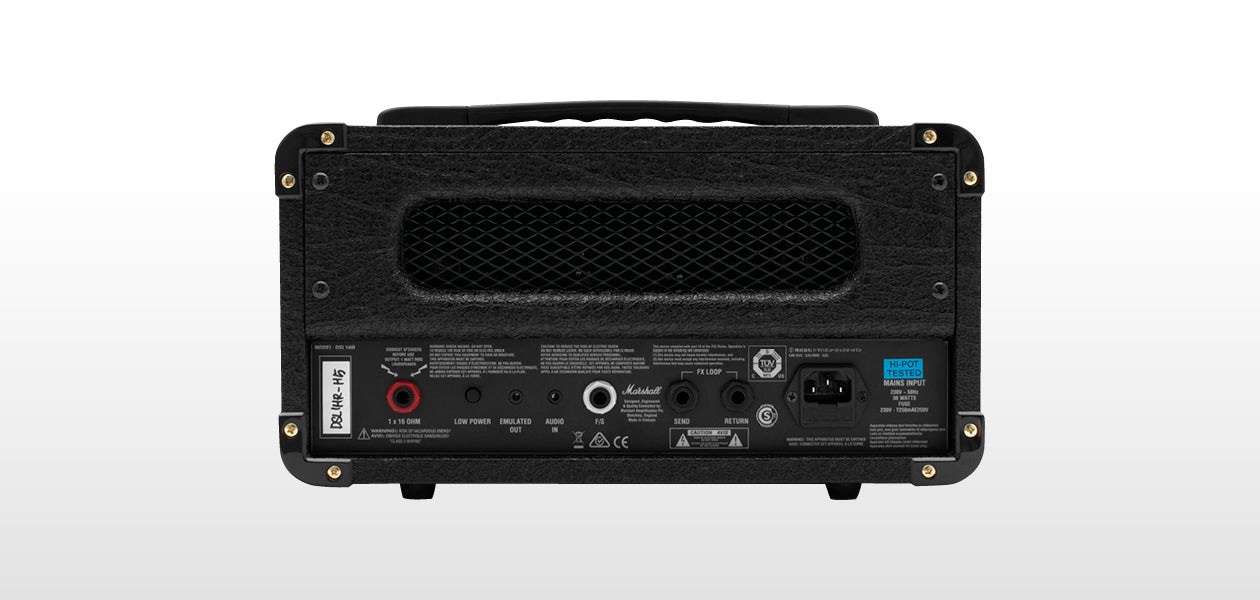

Outputs: 1 x 1/4" jack speaker output, 16Ω load only, 1 x 3.5mm jack emulated line out
Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch
Controls: Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option
Effects: Digital reverb
Effects loop: Yes, series, send/return

VALVES
Preamp valves: 2 x ECC83
Power amp valves: 1 x ECC82

ACCESSORIES
Footswitch: PEDL-90011 included
Cable: Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 5.6 kg / 12 lbs
Width: 360 mm / 14.2"
Height: 210 mm / 8.3"
Depth: 215 mm / 8.5"
